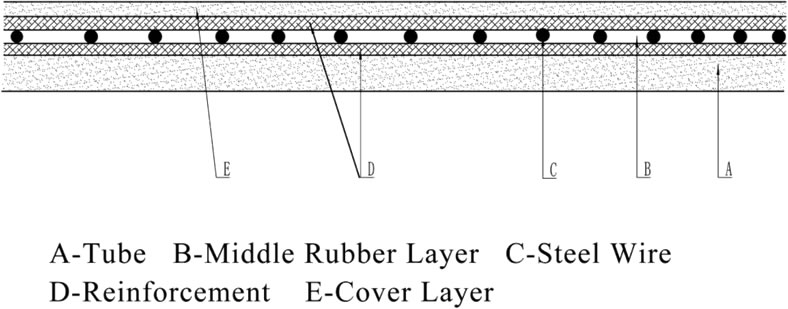

Inner tube: UHMWPE+EPDM
Reinforcement layer: High tensile textile cords with helix steel wire
Cover layer: EPDM synthetic rubber
Working temperature: -40℃-120 ℃
Safety factor: 3:1
Color: Blue/Green
Application: UHMWPE rubber hose, super flexible, can be used to transport acid, alkali, solvents and corrosive liquids
| I.D. | O.D. | W.P. | B.P. | MBR | Weight | Length | ||||
| mm | inch | mm | psi | bar | psi | bar | mm | Kg/m | ft | m |
| 19 | ¾" | 31.6 | 150 | 10 | 450 | 30 | 100 | 0.77 | 200 | 61/40 |
| 25 | 1" | 37.6 | 150 | 10 | 450 | 30 | 150 | 0.95 | 200 | 61/40 |
| 32 | 1 1/4" | 45 | 150 | 10 | 450 | 30 | 190 | 0.2 | 200 | 61/40 |
| 38 | 1 1/2" | 51.6 | 150 | 10 | 450 | 30 | 220 | 1.49 | 200 | 61/40 |
| 51 | 2" | 64.6 | 150 | 10 | 450 | 30 | 300 | 1.92 | 200 | 61/40 |
| 64 | 2 1/2" | 78.6 | 150 | 10 | 450 | 30 | 380 | 2.49 | 200 | 61/40 |
| 76 | 3" | 90.6 | 150 | 10 | 450 | 30 | 450 | 3.01 | 200 | 61/40 |
| 102 | 4" | 119.4 | 150 | 10 | 450 | 30 | 550 | 4.95 | 200 | 61/40 |
| 152 | 6" | 171.8 | 150 | 10 | 450 | 30 | 750 | 8.02 | 100 | 61/40 |
| Note: It can be customized according to customer requirements | ||||||||||
