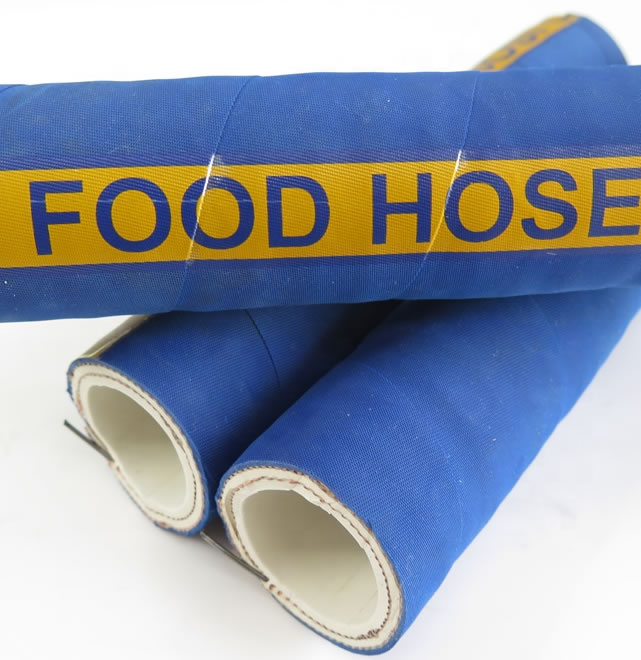

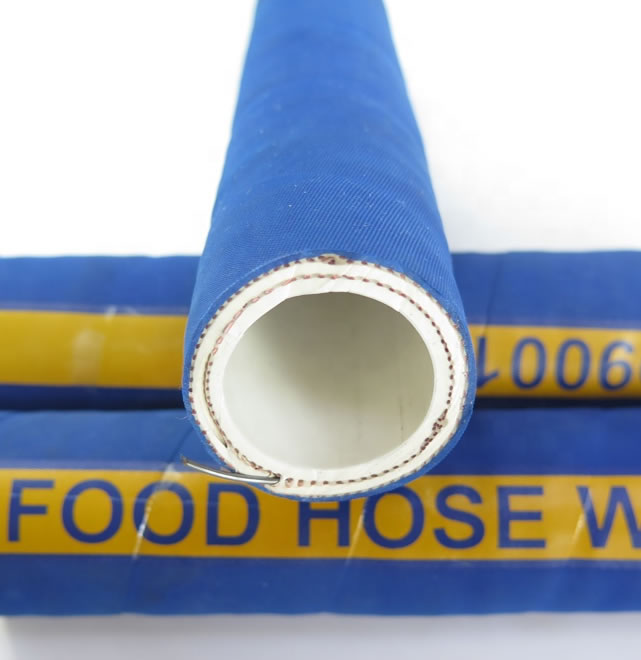

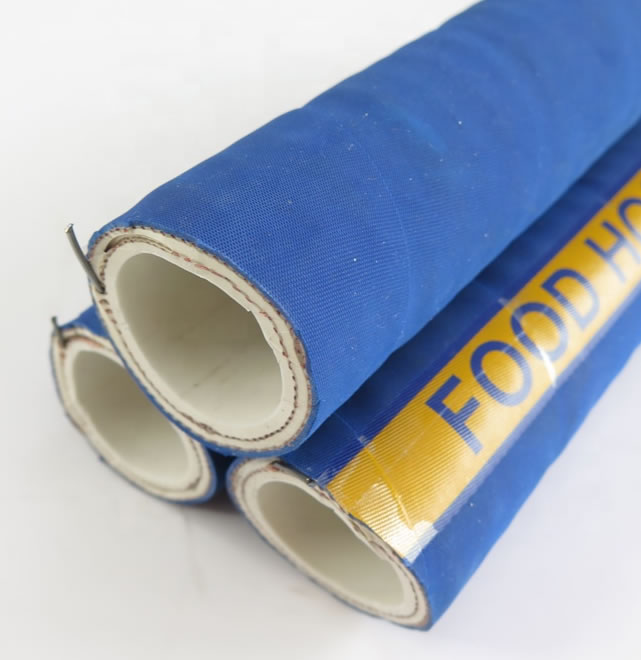

FDA Grade Hose

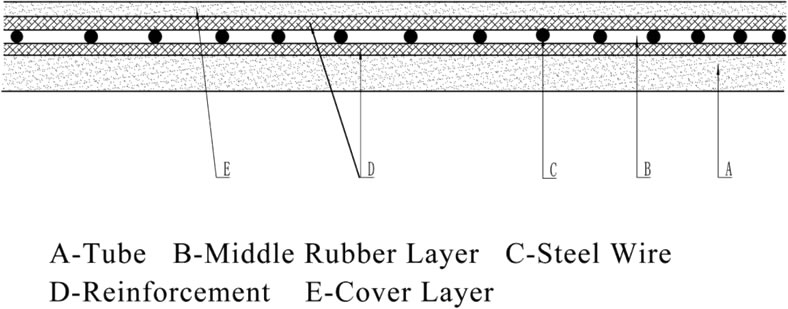

Inner tube: NBR

Reinforcement layer: High tensile textile cords with steel wire

Cover layer: NBR

Working temperature: -20℃-120 ℃

Color: Blue/Green

Safety factor: 3: 1

Application: Tube and cover designed for suction and discharge to transfer of foog and potable water. Highly resistant to animal fat and vegatable oil.

I.D.		O.D.	W.P.		B.P.		MBR	Weight	Length
mm	inch	mm	psi	bar	psi	bar	mm	Kg/m	ft	m
19	¾"	30.8	150	10	450	30	100	0.76	200	61/40
25	1"	36.8	150	10	450	30	150	0.94	200	61/40
32	1 1/4"	44.8	150	10	450	30	190	1.25	200	61/40
38	1 1/2"	51.4	150	10	450	30	220	1.56	200	61/40
51	2"	64.4	150	10	450	30	300	2.01	200	61/40
64	2 1/2"	78	150	10	450	30	380	2.61	200	61/40
76	3"	92.4	150	10	450	30	450	3.60	200	61/40
102	4"	119.2	150	10	450	30	550	5.16	200	61/40
152	6"	172	150	10	450	30	750	8.58	100	61/40
Note: It can be customized according to customer requirements

EPDM Food Hose

Inner tube: EPDM

Reinforcement layer: High tensile textile cords with helix steel wire

Cover layer: EPDM

Working temperature: -40℃-150 ℃

Color: Blue/Green

Safety factor: 3: 1

Application: The tube is widely used in food factories to delivery hot water, beer, etc.

I.D.		O.D.	W.P.		B.P.		MBR	Weight	Length
mm	inch	mm	psi	bar	psi	bar	mm	Kg/m	ft	m
19	¾"	30.8	150	10	450	30	100	0.72	200	61/40
25	1"	36.8	150	10	450	30	150	0.89	200	61/40
32	1 1/4"	44.8	150	10	450	30	190	1.19	200	61/40
38	1 1/2"	51.4	150	10	450	30	220	1.48	200	61/40
51	2"	64.4	150	10	450	30	300	1.91	200	61/40
64	2 1/2"	78.4	150	10	450	30	380	2.48	200	61/40
76	3"	90.8	150	10	450	30	450	3.00	200	61/40
102	4"	119.2	150	10	450	30	550	4.95	200	61/40
152	6"	171.6	150	10	450	30	750	8.00	100	30.5
Note: It can be customized according to customer requirements
