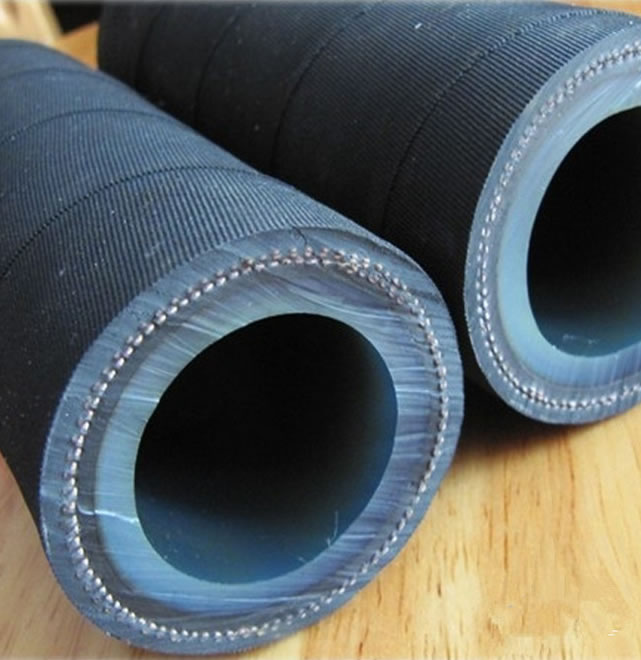

Inner tube: NR+BR
Reinforcement layer: High tensile textile cords
Cover layer: NR+SBR
Working temperature: -20℃-80℃
Reference standard: HG/T2192-2008
Safety factor: 3: 1

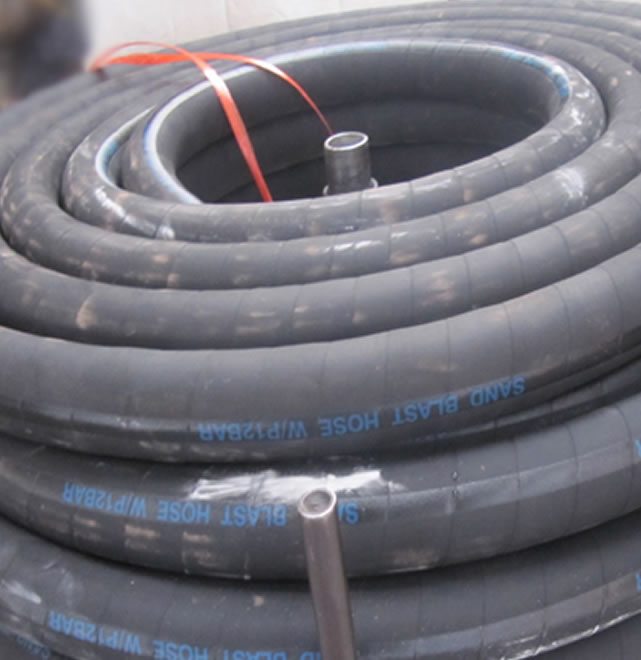

Application: Delivery quartz and metal sand, polishing, ridding rust on metal surface and spraying cement. It is manufactured with anti-static rubber granting a complete discharge of static electricity.
| I.D. | O.D. | W.P. | B.P. | Tube Thickness | Weight | Length | |||
| mm | inch | mm | psi | bar | bar | mm | Kg/m | ft | m |
| 19 | 1/4" | 32 | 170 | 12 | 36 | 4.0 | 0.66 | 200 | 61 |
| 25 | 1" | 38 | 170 | 12 | 36 | 4.0 | 0.89 | 200 | 61 |
| 32 | 1 1/4" | 48 | 170 | 12 | 36 | 5.0 | 1.29 | 200 | 61 |
| 38 | 1 1/2" | 54 | 170 | 12 | 36 | 5.0 | 1.57 | 200 | 61 |
| 51 | 2" | 68 | 170 | 12 | 36 | 5.5 | 2.39 | 200 | 61 |
| 64 | 2 1/2" | 83 | 170 | 12 | 36 | 5.5 | 2.98 | 200 | 61 |
| 76 | 3" | 99 | 170 | 12 | 36 | 6.0 | 4.30 | 200 | 61 |
| Note: It can be customized according to customer requirements | |||||||||
