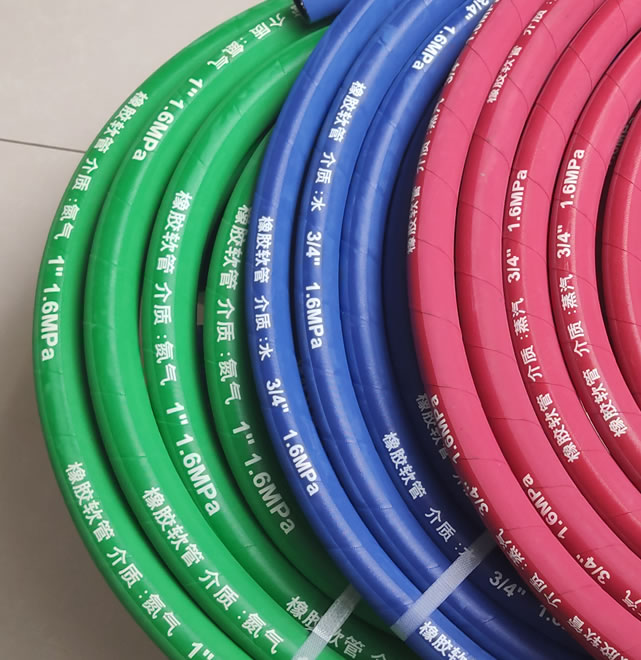

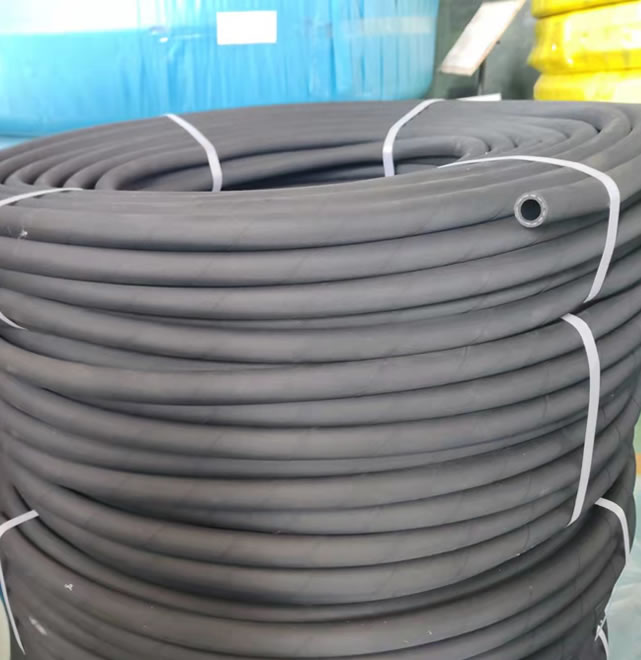

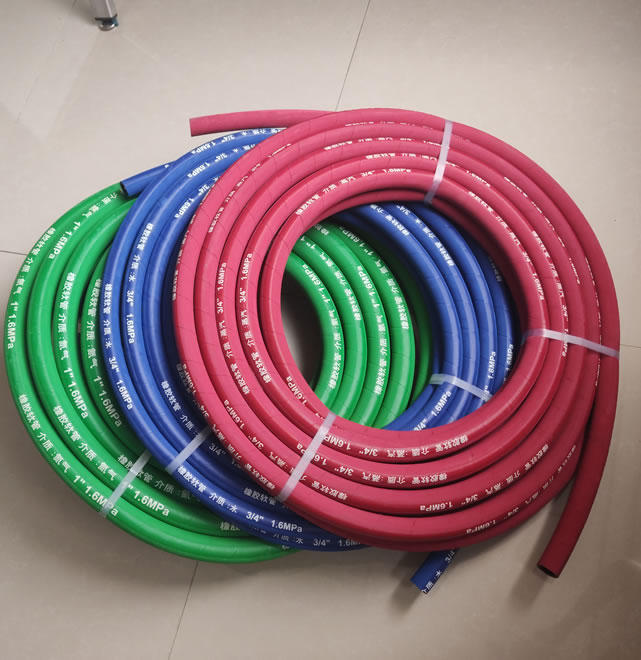

Steam Hose & Hot Water Hose

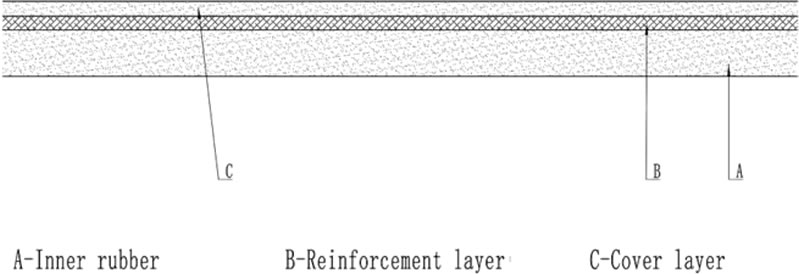

Inner tube: EPDM

Reinforcement layer: High tensile textile

Cover layer: EPDM

Working temperature: -40℃-150℃

Reference standard: GB118692

Safety factor: 4: 1

Application: Hot water hose is suitable for many applications in automobile industry, cleaning equipment, cooling systems.

I.D.		O.D.	W.P.		B.P.		MBR	Weight	Length
mm	inch	mm	psi	bar	psi	bar	mm	Kg/m	ft	m
6	1/4"	14	150	10	600	40	60	0.16	328	100
8	5/16"	16	150	10	600	40	80	0.19	328	100
10	3/8"	18	150	10	600	40	100	0.22	328	100
13	1/2"	22	150	10	600	40	130	0.31	328	100
16	5/8"	26	150	10	600	40	160	0.43	328	100
19	3/4"	31	150	10	600	40	190	0.52	328	100
25	1"	37	150	10	600	40	250	0.65	328	100
32	1 1/4"	45.8	150	10	600	40	250	1.15	200	61
38	1 1/2"	51.8	150	10	600	40	300	1.33	200	61
51	2"	65.6	150	10	600	40	400	1.71	200	61
64	2 1/2"	78	150	10	600	40	500	2.20	200	61
76	3"	92	150	10	600	40	600	2.98	200	61
102	4"	119	150	10	600	40	800	4.06	200	61
Note: It can be customized according to customer requirements
