Fuel & Diesel Oil Hose

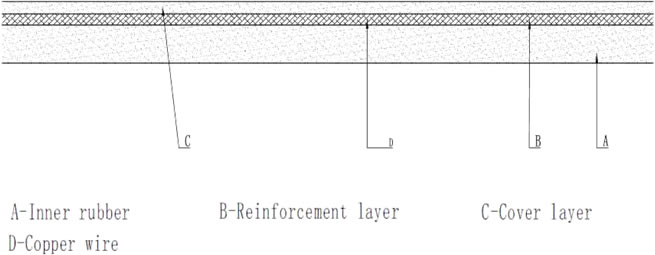

Inner tube: NBR

Reinforcement layer: High tensile textile cord

Cover layer: NBR+CR

Working temperature: -20℃ -80℃

Reference standard: HG/T2540-93

Safety factor: 3: 1

Charactor: Anti-static electricity, with copper wire

Application: Handle fuel oil, diesel oil

I.D.		O.D.	W.P.		B.P.		MBR	Weight	Length
mm	inch	mm	psi	bar	psi	bar	mm	Kg/m	ft	m
6	1/4"	14	300	20	900	60	60	0.18	328	100
8	5/16"	16	300	20	900	60	80	0.21	328	100
10	3/8"	18	300	20	900	60	100	0.25	328	100
13	1/2"	22	300	20	900	60	130	0.36	328	100
16	5/8"	26	300	20	900	60	160	0.48	328	100
19	3/4"	29	300	20	900	60	190	0.55	328	100
25	1"	36	300	20	900	60	250	0.78	328	100
32	1 1/4"	44	300	20	900	60	250	1.06	200	61
38	1 1 /2"	52	300	20	900	60	300	1.41	200	61
51	2"	65	300	20	900	60	400	1.82	200	61
64	2 1/2"	78	300	20	900	60	500	2.30	200	61
76	3"	90	300	20	900	60	600	2.68	200	61
102	4"	119	300	20	900	60	800	4.21	200	61
Note: It can be customized according to customer requirements

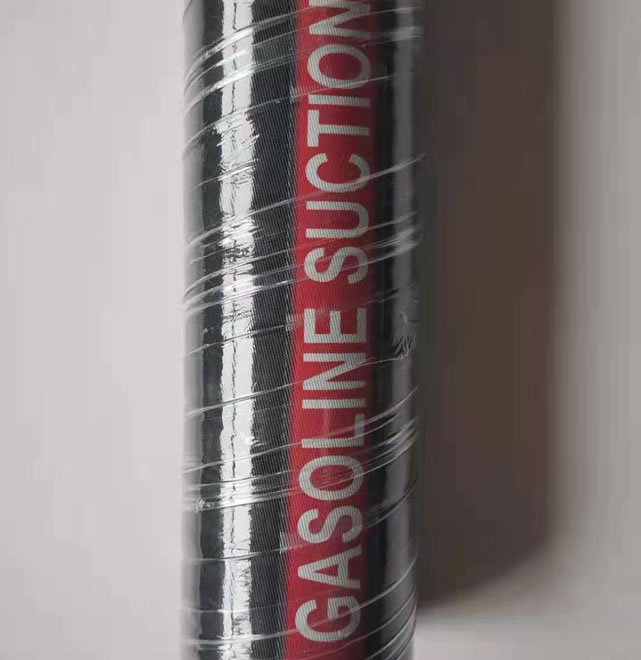

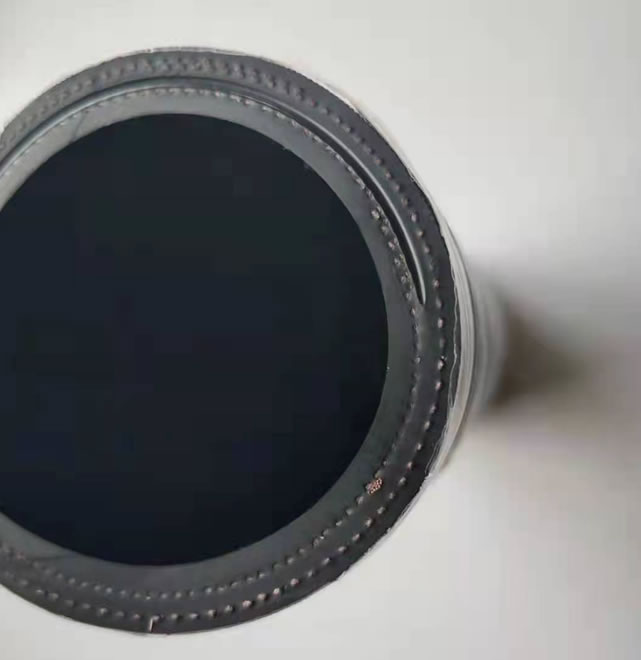

Fuel & Diesel Oil
Suction And DischargeHose

Inner tube: NBR

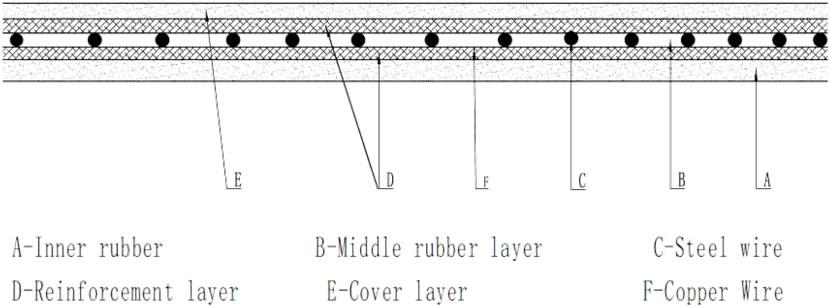

Reinforcement layer: High tensile textile cords with helix steel wire, antistatic wire

Cover layer: NBR+CR

Working temperature: -20℃ - 80℃

Reference standard: HG/T2540-93

Safety factor: 3: 1

Charactor: It with stands the full vacuum, anti-static electricity

Application: Handle fuel oil, diesel oil, used for a wide range of petroleum products up to 50% aromatic content.

I.D.		O.D.	W.P.		B.P.		MBR	Weight	Length
mm	inch	mm	psi	bar	psi	bar	mm	Kg/m	ft	m
19	3/4"	30	150	10	450	30	100	0.69	200	61
25	1"	36	150	10	450	30	150	0.86	200	61
32	1 1/4"	44	150	10	450	30	190	1.23	200	61
38	1 1/2"	51	150	10	450	30	220	1.54	200	61
51	2"	64	150	10	450	30	300	1.98	200	61
64	2 1/2"	78	150	10	450	30	380	2.61	200	61
76	3"	90	150	10	450	30	450	3.16	200	61
102	4"	120	150	10	450	30	550	5.08	200	61
152	6"	171	150	10	450	30	750	8.34	100	30.5
203	8"	224	150	10	450	30	1100	12.71	100	30.5
Note: It can be customized according to customer requirements
